Torsion Spring Manufacturers

Unnati Spring Technology gives a choice of torsion springs with legs of identical period orientated at various unloaded angles. Torsion springs can shop and launch angular electricity or statically maintain a mechanism in area via way of means of deflecting the legs approximately the frame centerline axis. They provide resistance to curve or rotationally carried out force. A spring of this kind will lessen in frame diameter and boom barely in frame period whilst deflected withinside the desired path of the fabricated wind. Depending at the application, torsion springs may be designed to paintings in a clockwise or counter-clockwise rotation, for this reason figuring out the path of the wind. Common torsion springs are the ones utilized in a garments pin or a storage door.

Torsion Springs Characteristics

The torsion spring configuration is created for the reason of storing and freeing angular power or for the reason of statically preserving a mechanism in region through deflecting the legs approximately the frame centerline axis. A spring of this kind will lessen in frame diamter and boom barely in frame period whilst deflected withinside the favored route of the fabricated wind.

The route of the fabricated wind also can be essential for torsion spring packages because of the leg bearing/attachment place having to be at the left or proper aspect upon assembly.

A torsion spring is typically supported through a rod (mandrel) this is coincident with the theoretical hingeline of the very last product.

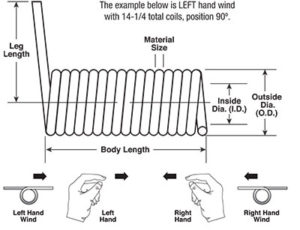

Torsion Spring Dimensions

1. Hold the spring in a single hand, and the calipers withinside the different hand.
2. Place the caliper “teeth” at the internal diameter. This is referred to as the Inside Diameter (I.D.).
3. Place the calipers at the “leg” to degree the wire. This is referred to as Material Size (or Wire Diameter).
4. Place the calipers at the operating coils of the spring. This is referred to as the Body Length.Place the calipers at the operating coils of the spring. This is referred to as the Body Length.
5. Count the entire coils, starting at one end, simply below wherein the leg leaves the body. Count to the alternative end, all complete coils, and any fraction thereof. This is referred to as Number of Coils and determines leg position. i.e. 90°, 180°, etc.
6. Determine the path of coil (Wind Direction). See diagram for hand/finger illustration. Right Hand Wind or Left Hand Wind.
-

Materials

The maximum grades of spring cord are used whilst fabricating our torsion springs. To create cost-powerful warehousing of our inventory spring stock for our customers, we provide fabric certification for custom springs only. Certifications of conformance for geometric tolerances set through the Spring Manufacturers Institute (SMI) are to be had for inventory torsion springs upon request.

The time period “spring steel” is a inventory stock time period protecting track cord, hard-drawn(MB) cord and oil-tempered cord. Additionally, inventory torsion spring substances may also encompass three hundred collection stainless steel.

Tolerances

Tolerance values for torsion springs depend upon the body-diameter to wire-diameter ratio and are about +/- 10% in torque and +/- 5% in diameter.

Finishes

Our stock extension sp-rings contain a selection of commonly requested finishes:

Zinc

Gold Irridite

Black Oxide

Passivated (upon request)

None (can be plated upon request)
